FULL DESCRIPTION
A PRIME CLUB ac capacitor can be used in place of a 370 volt capacitor and a 440 volt capacitor.
This capacitor is industrial grade and designed for harsh conditions. HVAC systems must endure the extreme hot and cold. Our capacitor is of the highest quality and made tough to ensure a long life to keep your HVAC running smoothly for at least 10 years guaranteed.
The dual capacitor is designed to connect to the fan motor (FAN) and compressor motor (HERM) in your HVAC system. You can rest assured your system will continue running smoothly by ensuring a stable and efficient power flow, the capacitor helps reduce stress on the motor, minimizes overheating, and potentially extends the motor's lifespan under normal operating conditions. The function of the capacitor is for start-up and operation of the AC motors, such as in Heat Pumps or Air Conditioning units (Condenser Straight Cool systems). It is small in size, lightweight, heat resisting and anti-explosion.
Is this capacitor compatible with my system?
Step 1) First check our Compatible Model list below. If your part number matches one of those, then yes it is compatible. If not, then continue to Step 2.
Step 2) If your model is not in the Compatible Model List, then simply answer the questions below. If you answer yes to all of the questions, then this model is compatible.
Q1.) What capacitance values are stated on your old capacitor. There should be two and the units of measure might be shown as "uF" or "MFD". If your capacitor states 45/5, 45+5 or 5/45, 5+45 etc. then it's a match.
Q2.) What voltage is your old capacitor? If it's less than or equal to 440V then it's a match.

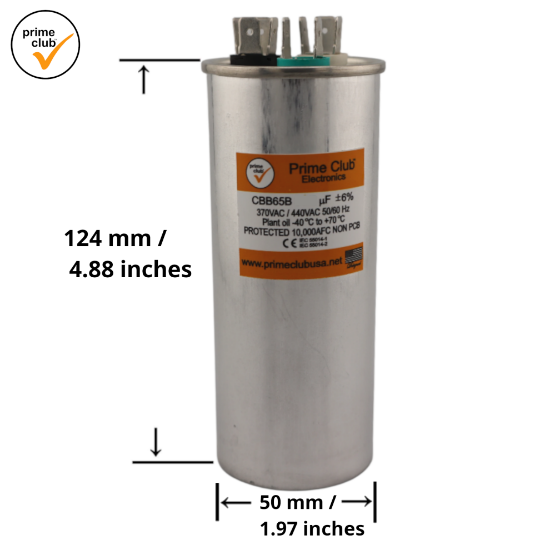

Q3.) Check the physical size and place where the capacitor is to be mounted. The size does not have to match. You just want to make sure you have enough room to fit the new capacitor. Look at the pictures in our listing for the actual size of our capacitor. Our capacitors are designed to be slightly smaller so that they will easily fit in almost all systems.
If you still have questions or concerns please send us a inquiry. We would be happy to assist you.
Model: CBB65 / CBB65B（Universal model)
Model Class: Type B (Harsh Environment)
Case Material: unpainted aluminum case
Dielectric Material: metallized polypropylene film
Capacitance: 45uf+5uf
Capacitance Tolerance: ±6%
Operating temperature: -40℃ to +70℃/-40℉ to +158℉
Frequency: 50/60 Hz
Dissipation Factor: 0.1% maximum
Compatible Models:
97F9895, Z97F995, Z97F9895, 97F9895BZ2, 97F9895BZ3, 97F9895BX, 97F9851, 97F9851S, C3DR455, C3455R, C4455R, 97F9880, 97F9880BX, PB450Z050S370DABX, 621635, 620907, 1172126, USA2236, P291-4553RS, P291-4554RS, 27L568, 27L880, 27L880BZ3, 27L889, 27L889BX, TRCD455, TRCFD455, PRCD455A, PRCFD455A, 12788, 12288, 12269, 12769, RC0114, TT-CAP-45/5/440R, HC98KA046, HC98KA046D, HC98JA046, HC98JA046D, HC98CA046, HCKS450D050R440Z, B9457-7300, cap050450440rt, CAP050450440CS, CAP050450440RTS, CAP050450440RTP, CAP050450440CT, CAP050450440RSP, CAP050450, R100335-12, 100335-11, 89N80, DAL-M4DJ0545, M4DJ0545, 4DJ0545, CPT00656, CPT0656, CPT-0656, CPT00668, CPT0668, CPT-0668, CPT02117, CPT2117, CPT-2117, CPT01874, CPT1874, CPT-1874, CPT02380, CPT2380, CPT-2380, C3455, C3455R, CPTC4455, SFCAP455D440R, 3GR0545, 14269, 14288, 328P4505H37N31A5Z, 43-25133-06, 432513306, TL45053, 43TL45053R, 43-TL45053-R, 810P4505H44P37A5X , AM455R, 4JR0545, HCKY450D050R440318Z6, CD45+5X440R, CD45+5X370R, cn440-4505ra
